5.0" Color Plug & Play Video Monitor
Display Composition

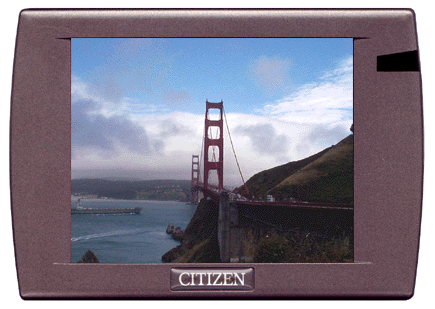

Cased Version 41TC-1AA Cased Version - Down Load Data Sheet - 41TC.PDF Speaker 36mm Dynamic Speaker Type Color filter STN (Twist Pneumatic) transmissive type negative display Pixel format 324 x 3 ( RGB ) x 234 - 4096 colors Driving method Composite video input signal Backlight Single tube, back-lit, fluorescent tube with diffuser and integrated inverter Video format NTSC Composite Video Overview
Designed specifically for displaying video images from sources such as video recorders and camcorders, door security systems, CCD cameras or even hand-held games, Citizen's range of liquid crystal video modules all make use of "Chip-On-Glass" ( C.O.G. ) technology providing the following advantages:-
• Active Matrix Performance without the high price
• High contrast image
• Clearer, brighter colors
• Excellent picture definition
• Compact, lightweight and robust design
Together with the combination of C.O.G. technology, the fast fluid liquid crystal and low resistivity I.T.O. (Indium-Tin Oxide) electrodes ensure that the image on the display is high quality and high contrast making it extremely clear and easy to see.
Optical Characteristics at 25°C
Item Symbol Typical Unit Condition Turn on time TON 120 ms q = 0·, f = 0· Turn off time TOFF 120 ms q = 0·, f = 0· Contrast ratio CR 6 - q = 0·, f = 0· Visual range ("up & down") q1 0<q1<+30 degrees q = 0·, CR > 2 Visual range ("left & right") q2 -40<q2<+40 degrees f = 90·, CR > 2 Electrical Characteristics
Item Minimum Typical Maximum Unit Supply voltage 8.0 9.0 12.0 V dc Current consumption - 500 550 mA Temperature Range
Item Minimum Maximum Unit Storage temperature - 10 + 60 ·C Operating temperature 5 + 40 ·C Weight: 420 grams
