3.8" 320 x 240 ¼-VGA
Display Composition
Model Number
- Transflective G3245H-FH (with DC-DC converter)
- Relfective G3245H-FR (with DC-DC converter)
- Transflective with EL back light G3245H-FE (with DC-DC converter)
- Transflective model (without DC-DC converter version) G3245H
Down load G3245H-FH / -FR / -FE data sheet and G3245H ( no DC-DC converter version)
Type Monochrome STN ( Super-Twist Pneumatic ) transmissive type negative display Pixel format 320 x 240 individually addressable dots as a graphic matrix Driving method 1/240 duty multiplex drive Surface texture Non-glare polarizer coating Overview
The G3245 has three models: Relfective G3245H-FR, Transflective G3245H-FH and Transflective with EL back light G3245H-FE.

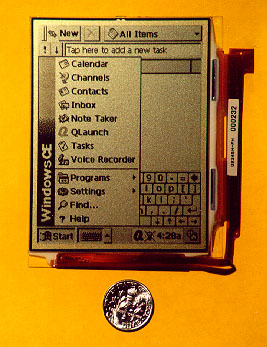

Shoreline Electronics, Inc. has introduced a high-contrast, 320 X 240 resolution, chip-on-glass liquid-crystal display. The new G3245H series offers an ultra-slim design with low power consumption. This display can be used in either landscape (320 X 240 pixel) or portrait (240 X 320 pixel) mode. Its viewing area is 78.8 X 59.6mm with a dot pitch of .23mm.
With features including an overall thickness of only 5.5mm, which includes the connector, and 5mm watts power consumption makes this display ideal for portable and battery powered applications.
A .5mm pitch flex cable that plugs into a zero-insertion-force JST connector makes connections to the display. This is one of the most reliable connections, because there is no need for zebra strips or heat seals.
- Super-high contrast true "black-and-white" image
- Clear, bright, easy-to-read image
- Compact, light-weight and robust design.
