Display Composition
Cased Version TB56 Uncased Version UB-290 Type TN (Twist Nematic) transmissive type negative display Pixel format 648 x 130 Driving method Composite video input signal (CCIR) Backlight Single tube, back-lit, fluorescent tube with diffuser. Video format PAL format composite video, 2 volts peak-to-peak, negative sync polarity; NTSC versions of the other displays can be produced Overview
Designed specifically for displaying video images from sources such as video recorders and camcorders, door security systems, CCD cameras or even hand-held games, Citizen's range of liquid crystal video modules all make use of "Chip-On-Glass" ( C.O.G. ) technology providing the following advantages:-
• High contrast image
• Excellent picture definition
• Compact, lightweight and robust design
Together with the combination of C.O.G. technology, the fast fluid liquid crystal and low resistivity I.T.O. (Indium-Tin Oxide) electrodes ensure that the image on the display is high quality and high contrast making it extremely clear and easy to see.
Optical Characteristics at 25°C
Item Symbol Typical Unit Condition Turn on time TON 120 ms q = 0·, f = 0· Turn off time TOFF 120 ms q = 0·, f = 0· Contrast ratio CR 6 - q = 0·, f = 0· Visual range ("up & down") q1 0<q1<+30 degrees q = 0·, CR > 2 Visual range ("left & right") q2 -40<q2<+40 degrees f = 90·, CR > 2 Electrical Characteristics
Item Minimum Typical Maximum Unit Supply voltage 5.50 6.00 7.50 V dc Current consumption - 400 470 mA Temperature Range

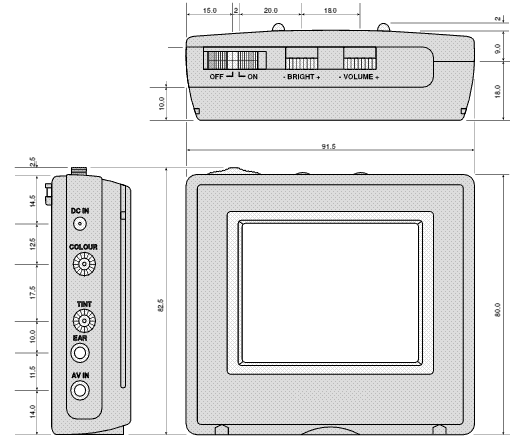

Item Minimum Maximum Unit Storage temperature - 25 + 60 ·C Operating temperature 0 + 40 ·C Mechanical Specifications: TB56 (cased version)
Weight: 130 grams

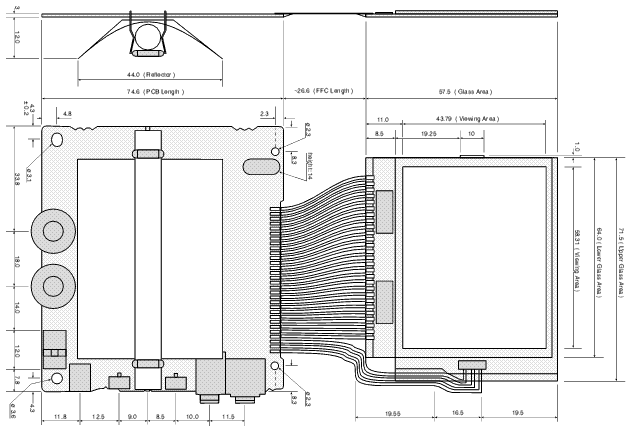

Mechanical Specifications: UB-290 (uncased version)
Weight: 82 grams
Connection Details
Connection is by means of a 3.5mm "stereo" jack plug, with pins as shown above.
